WMI-SS-200-75

WMI-SS-200-75-Sales

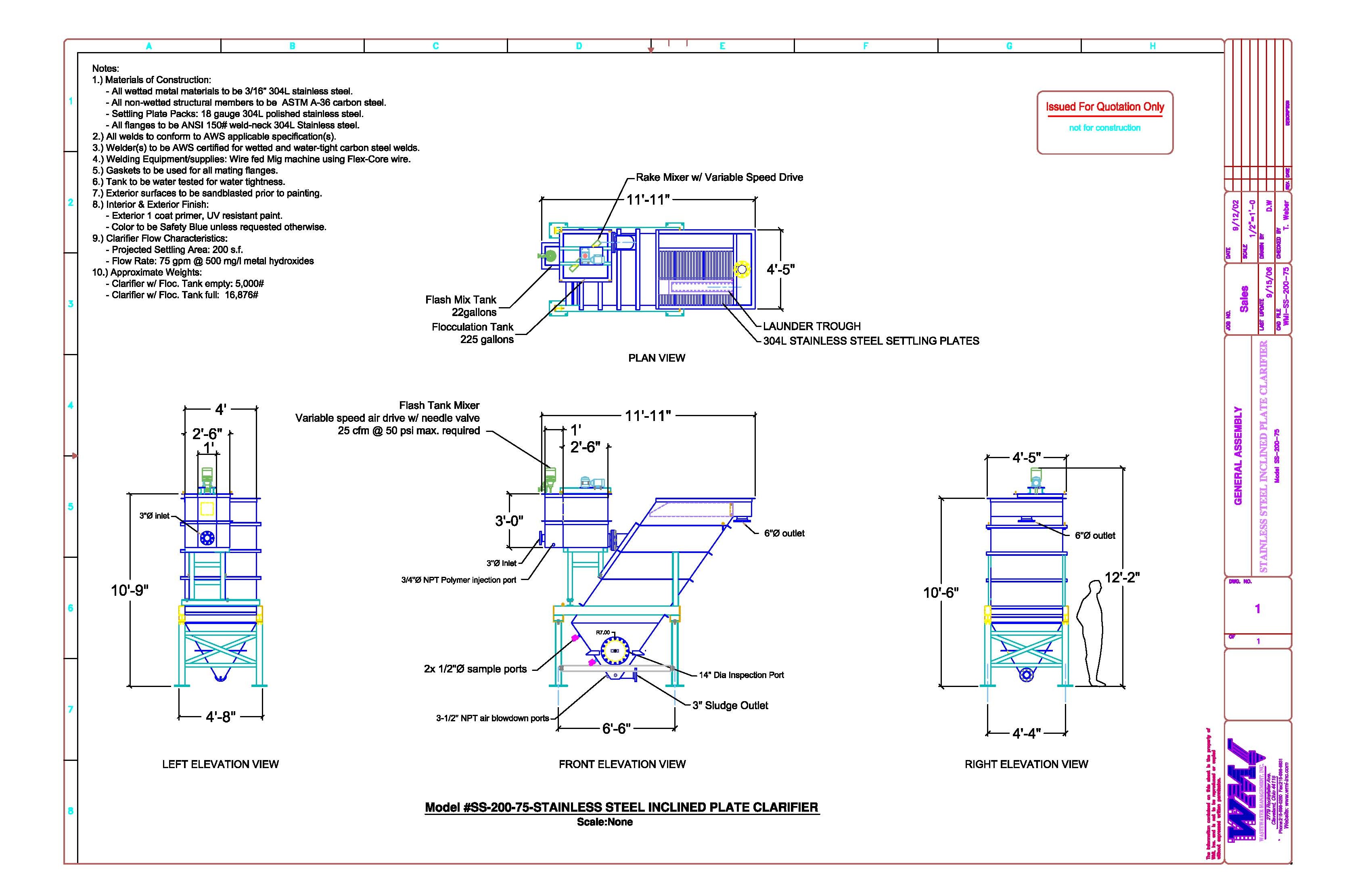

Download “WMI-SS-200-75” WMI-SS-200-75-Sales-e1420551324964.jpg – Downloaded 259 times – 773 kB

Notes:
1.) Materials of Construction:
– All wetted metal materials to be 3/16″ 304L stainless steel.
– All non-wetted structural members to be ASTM A-36 carbon steel.
– Settling Plate Packs: 18 gauge 304L polished stainless steel.
– All flanges to be ANSI 150# weld-neck A-36 carbon steel.
2.) All welds to conform to AWS applicable specification(s).
3.) Welder(s) to be AWS certified for wetted and water-tight carbon steel welds.
4.) Welding Equipment/supplies: Wire fed Mig machine using Flex-Core wire.
5.) Gaskets to be used for all mating flanges.
6.) Tank to be water tested for water tightness.
7.) Exterior surfaces to be sandblasted prior to painting.
8.) Interior & Exterior Finish:
– Exterior 1 coat primer, UV resistant paint.
– Color to be Safety Blue unless requested otherwise.
9.) Clarifier Flow Characteristics:
– Projected Settling Area: 200 s.f.
– Flow Rate: 75 gpm @ 500 mg/l metal hydroxides
10.) Approximate Weights:
– Clarifier w/ Floc. Tank empty: 5,000#
– Clarifier w/ Floc. Tank full: 15,000#
